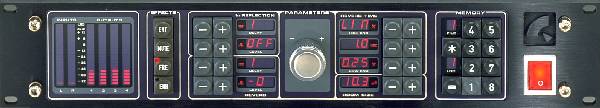

Quantec QRS Raumsimulator
German Vintage Digital Reverb




Links
Official Quantec Homepage - they don't build the QRS anymore, but they have a modern product called "Yardstick", which emulates most of the QRS features. Check out the Yardstick sound examples !
Thoughts on Reverb by Jeremy Wakefield

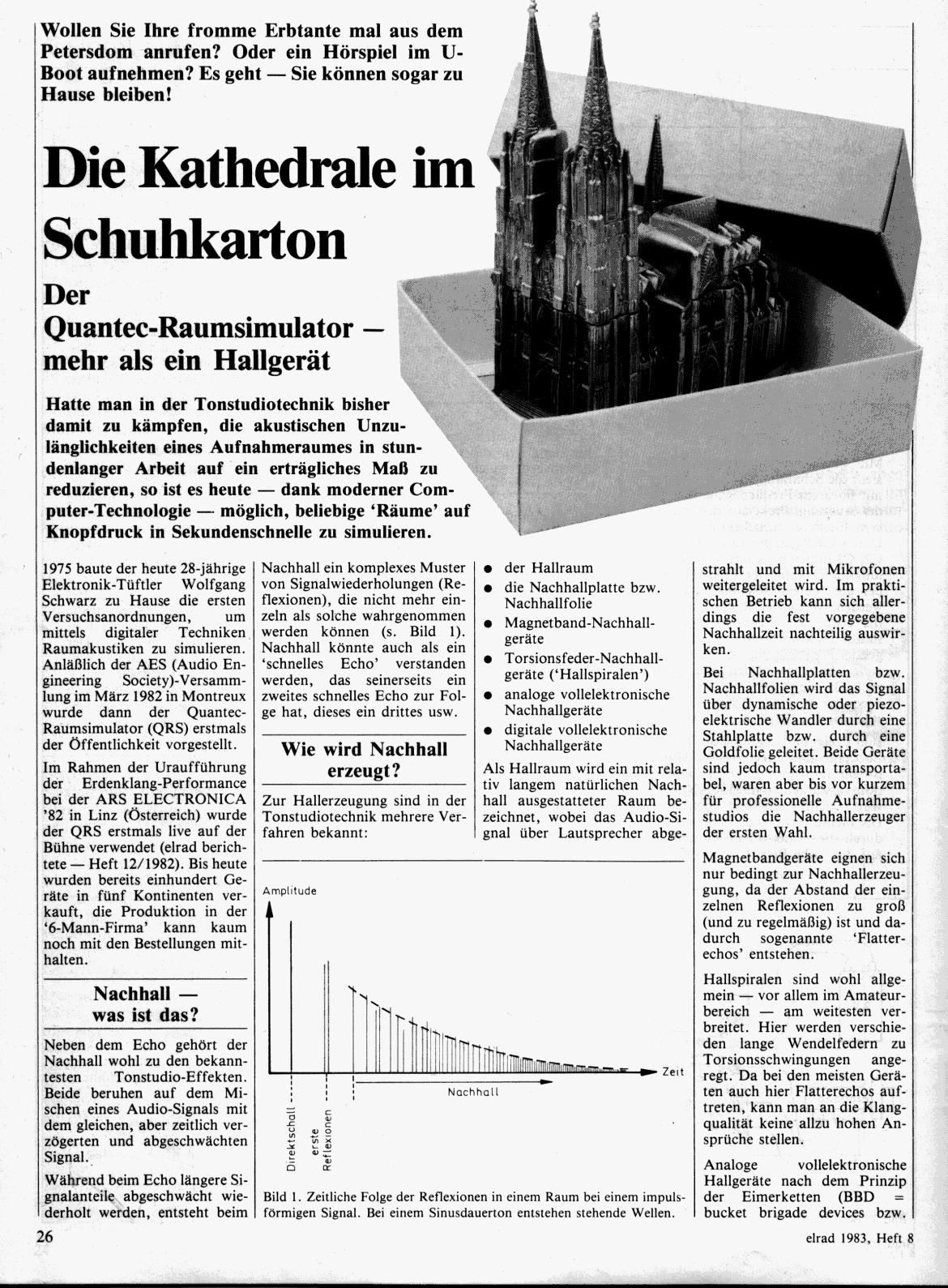

Die Kathedrale im Schuhkarton
German Magazine "Elrad", Aug. 1983
Seite 1
Seite 2

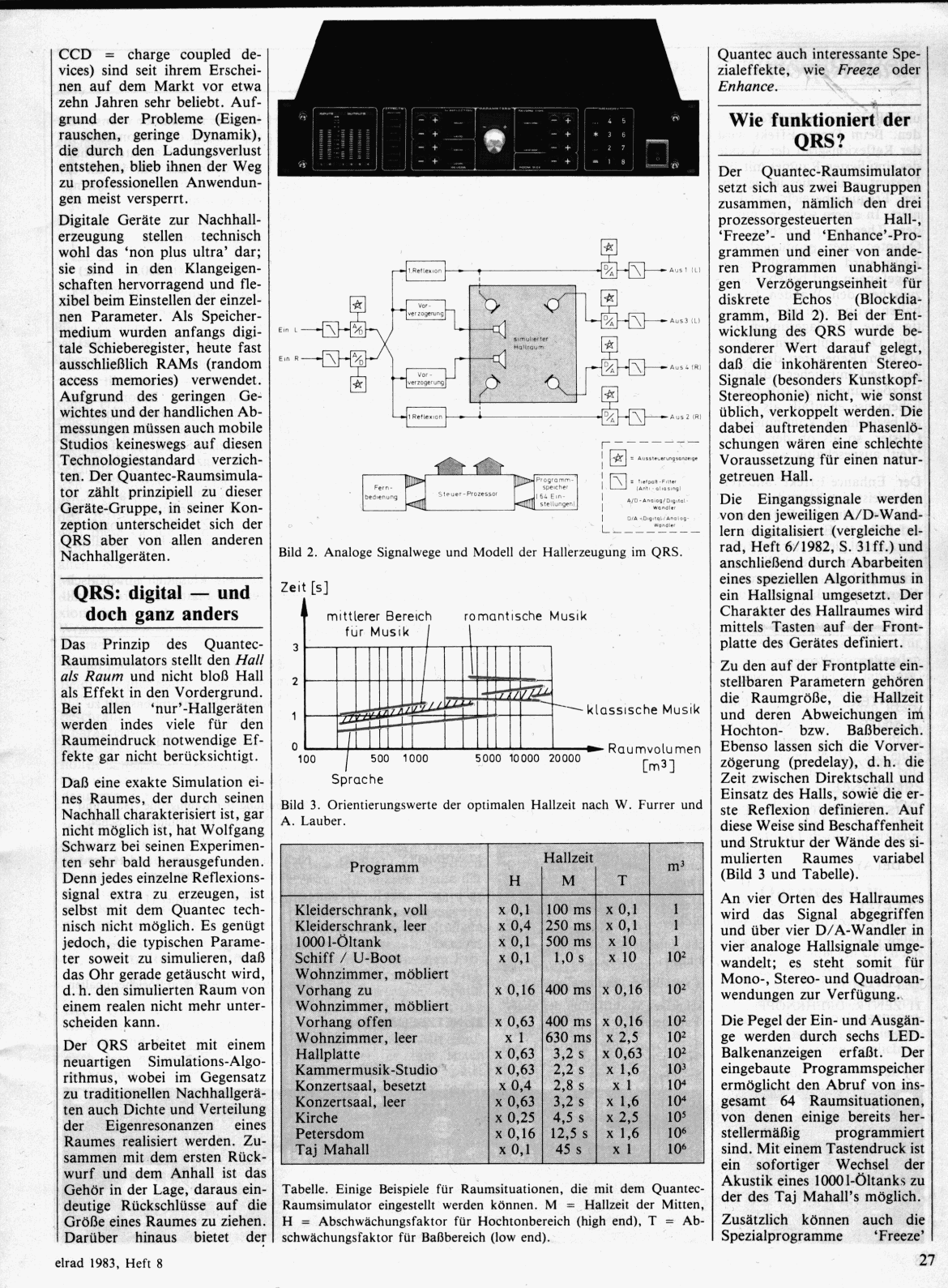

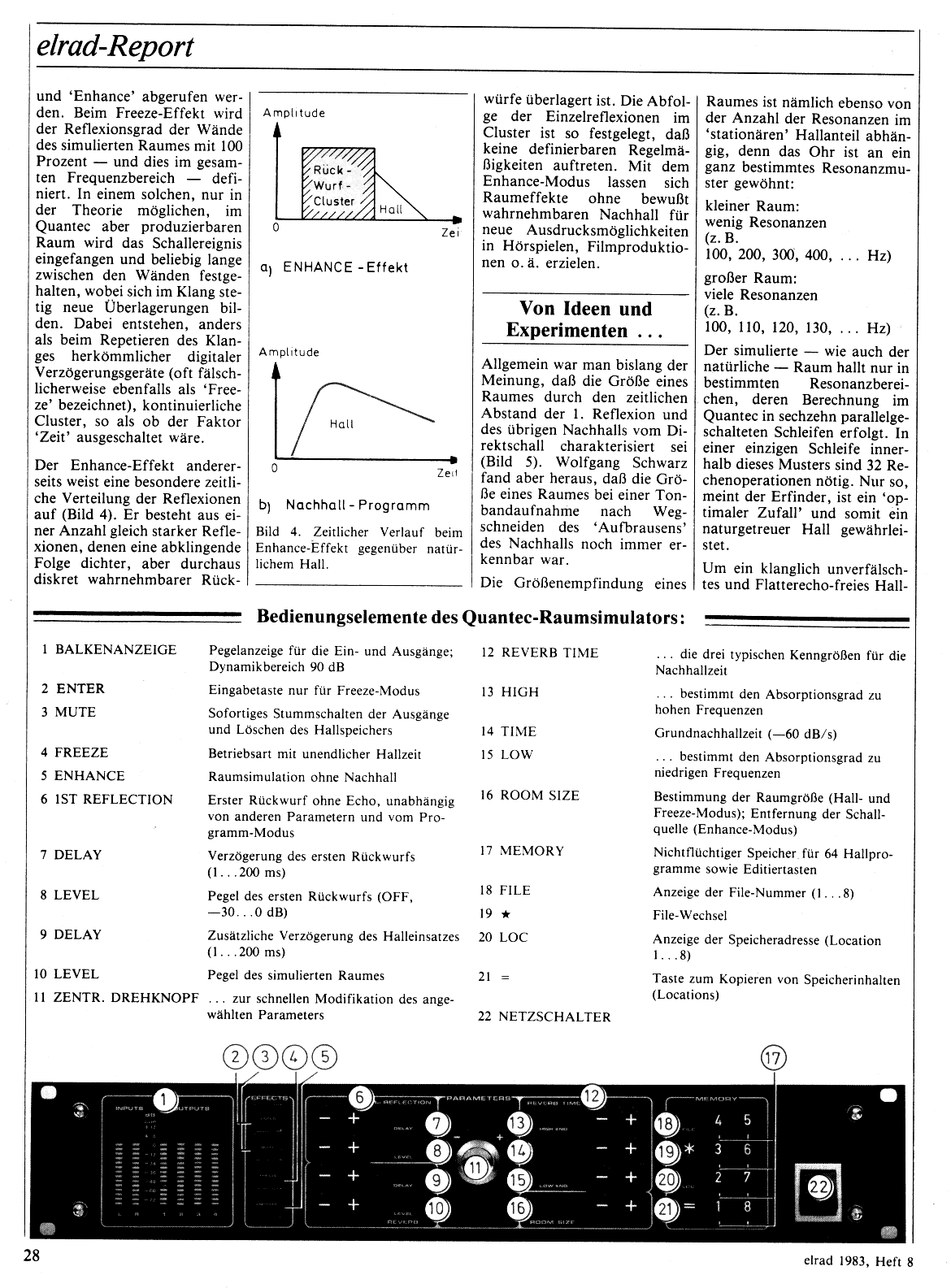

Seite 3

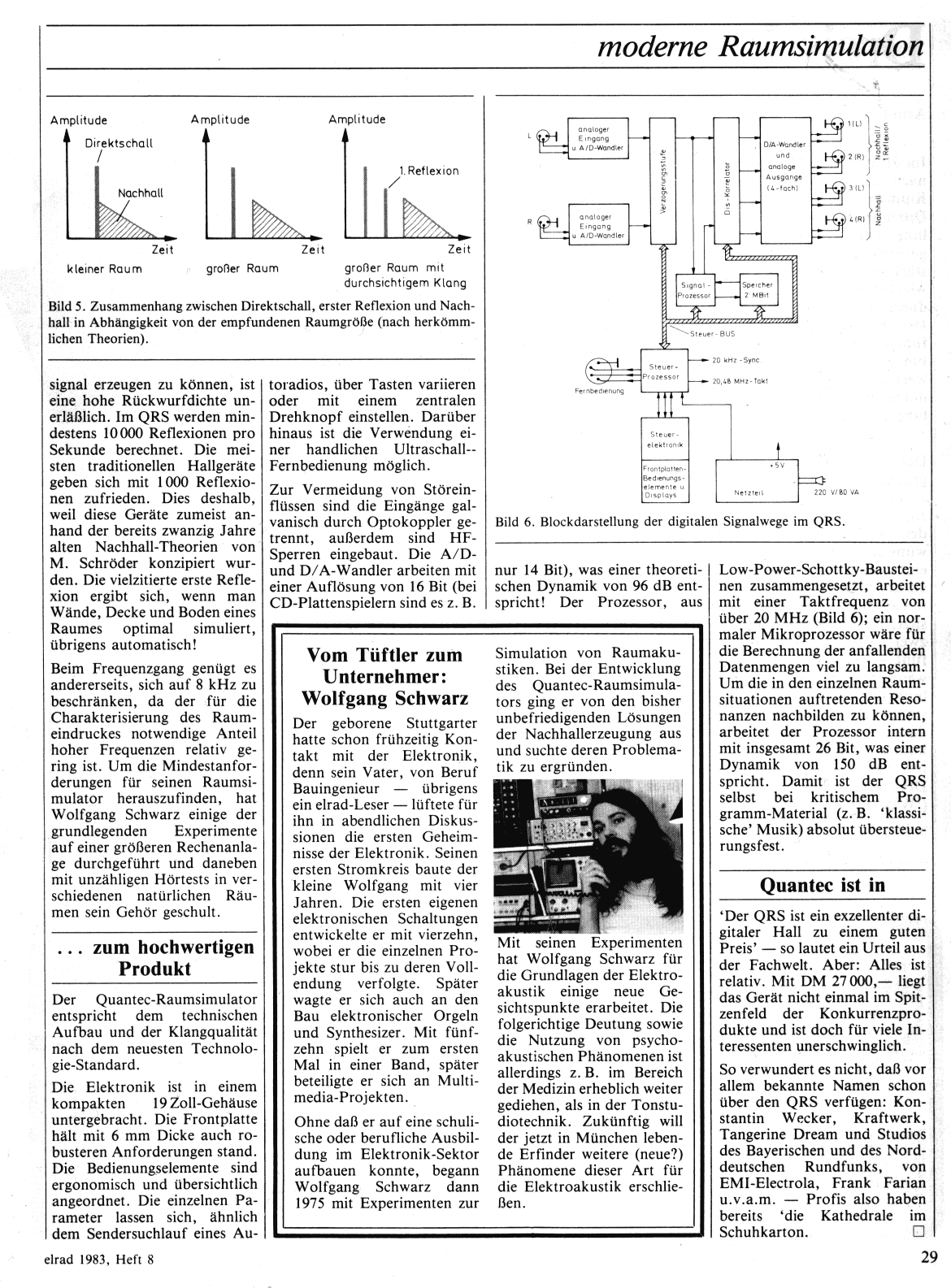

Seite 4

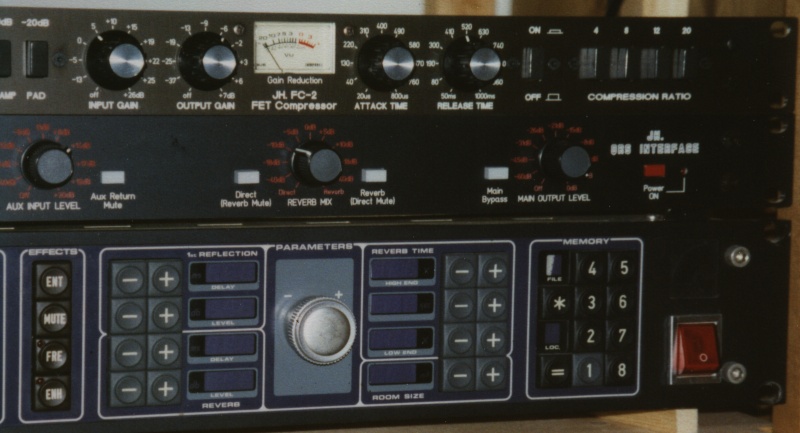

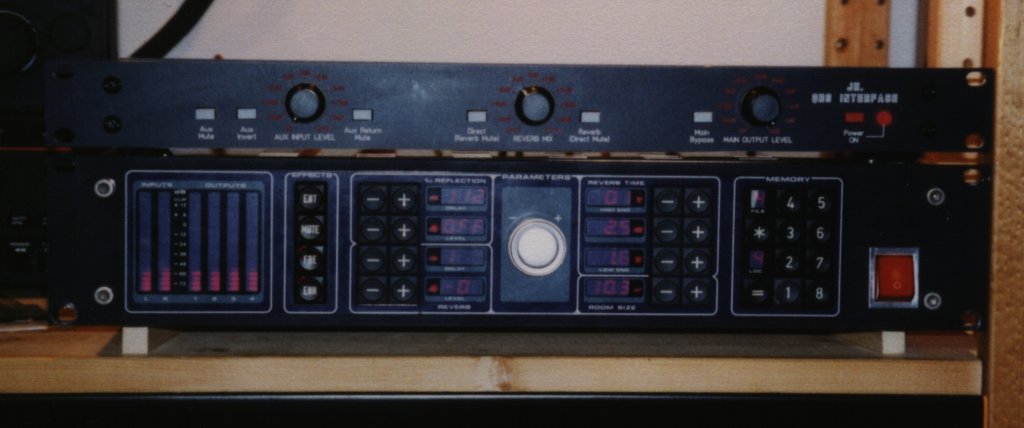

JH. QRS Interface

Click on Thumbnails for larger View
Schematics for Interface

So I wanted to integrate the QRS in my studio, but ... for best results, the QRS should be fed with a stereo input signal ... and my mixing desk doesn't have the luxury of stereo FX sends. Using the QRS straight on the stereo mix is no good idea either: The frequency response is too bad to run the dry signal thru the box. What's needed is a simple wet/dry potentiometer, as you find it on every cheap Reverb today. A few opamps and good dual potentiometer would have done the job. But as I had to build an enclosure, front panel, power supply and all that regardless of the size of the circuit, I found it was a good idea to include a little more in my Interface.  So I ended up with a multi function router / mixer box that is connected to both, the stereo output of my mixing desk, and to a effect send / return path of the desk. The obvious choice is to use the Quantec either as a true stereo processor on the stereo mix (with the drawback of all instruments getting the same amount of reverb), or to use it for individual instruments, with individual reverb amount chosen by the effect send of each channel. (Drawback here: It's mono in / stereo out, even when the instrument is stereo and uses two channels on the mixer.) It's nice to have both options available with the flick of a switch on a router box, without using a patchbay. But there is a third option, combining both methods: The main wet / dry mix can be done on the stereo output, and starting from that point, individual mixer channels can get additional reverb over the effect sends. With an "invert" switch on the interface box, it's also possible to get less reverb for individual channels - the signal that comes over the effect send is substracted from the main reverb input signal. This will only work to some extend, as we're combining a mono send and a stereo input signal, but in practice it's very useful.
