Soldering POTs into a PCB
Detail Photos

We've developed a technique for soldering in POTs to a PCB - getting them flat and straight.  Here's how it looks:

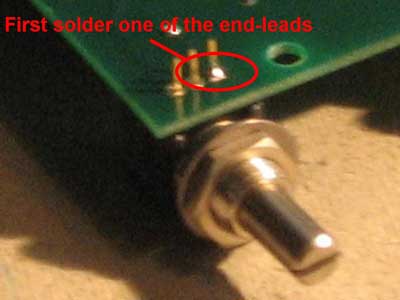

First we solder one end-lead into the board

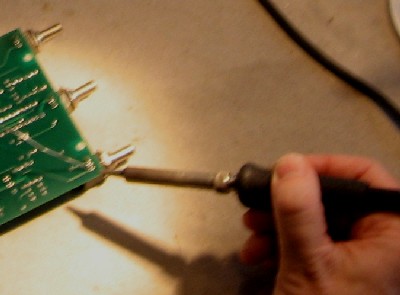

then we pick up the PCB and press the pot nice and flat while we melt that one joint

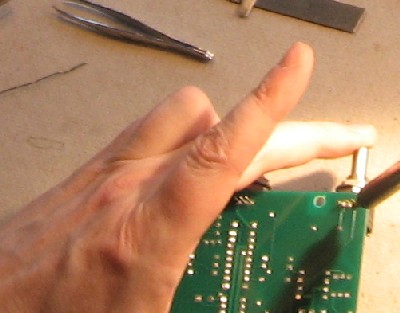

then we solder the opposite end lead

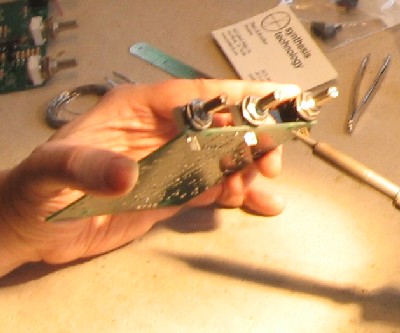

we pick the PCB back up and melt that lead while we adjust the straightness of the pot until it looks as perpendicular as possible. having done so, we then solder the middle leads and we're done
