Tellun Industries MUUB2 PCB
(http://www.tellun.com/motm/diy/muub/muub.html)

Click here to download a powerpoint file with our charts of this pcb. All the images below are hyperlinked to larger, higher-resolution images so if you click on them, the bigger image should load into your browser.

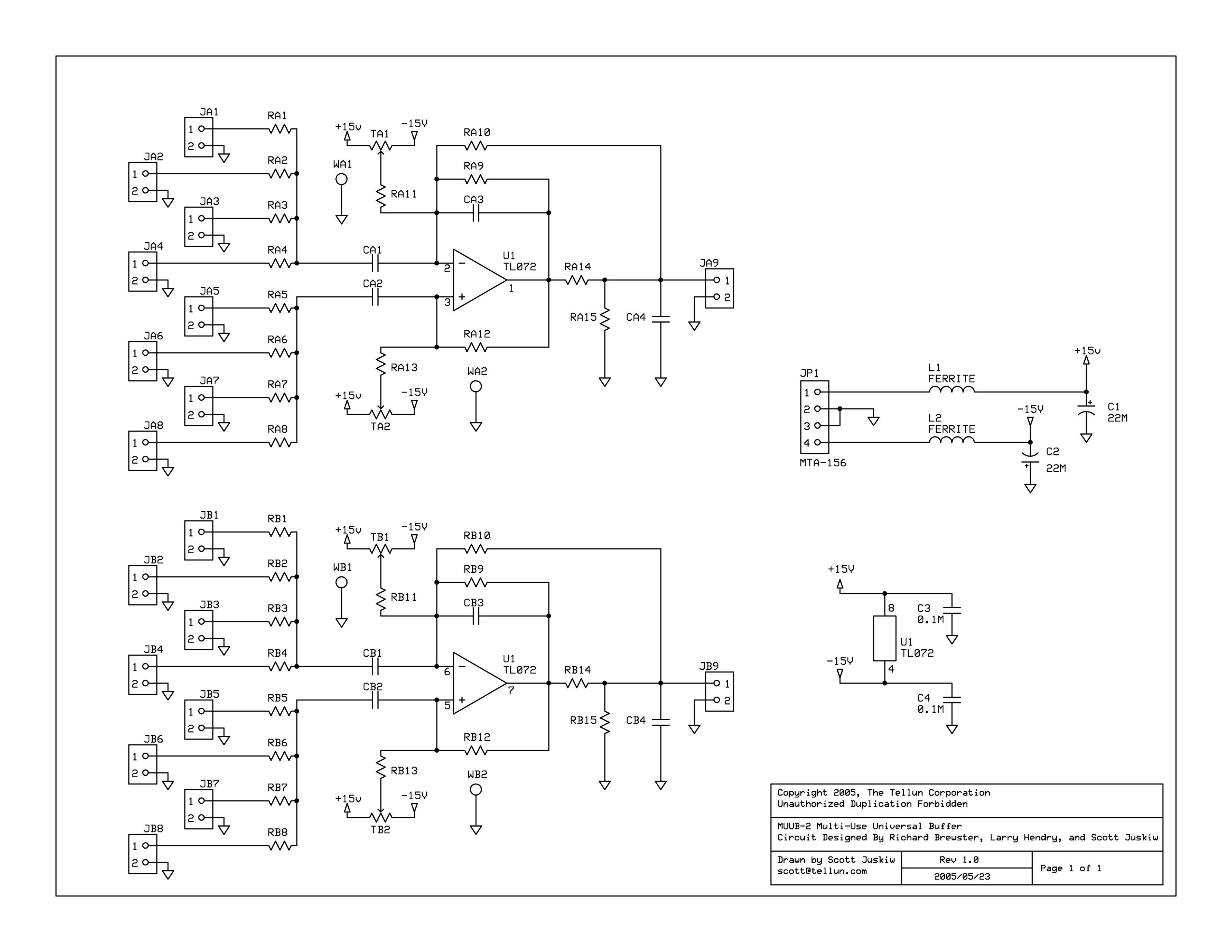

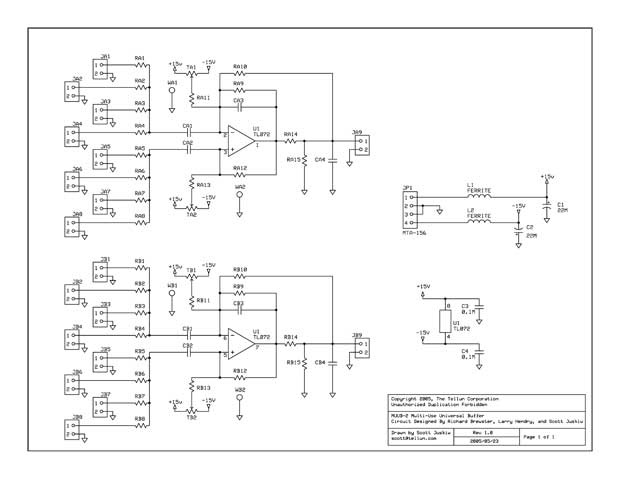

Here is Scott's drawing of the MUUB2 schematics (click on the image for a larger, higher resolution one):

Click here to download the .pdf version.

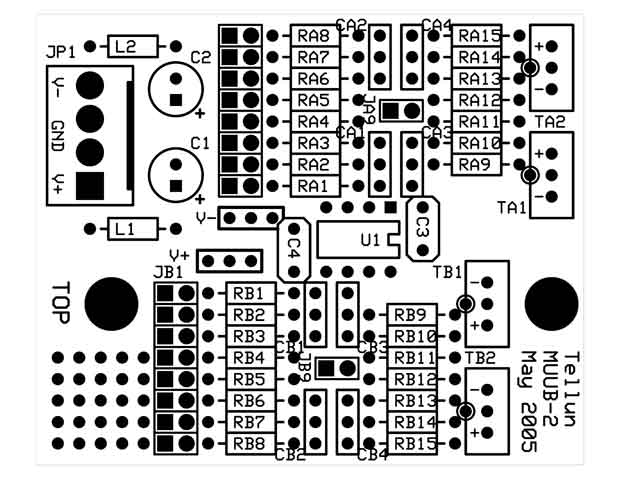

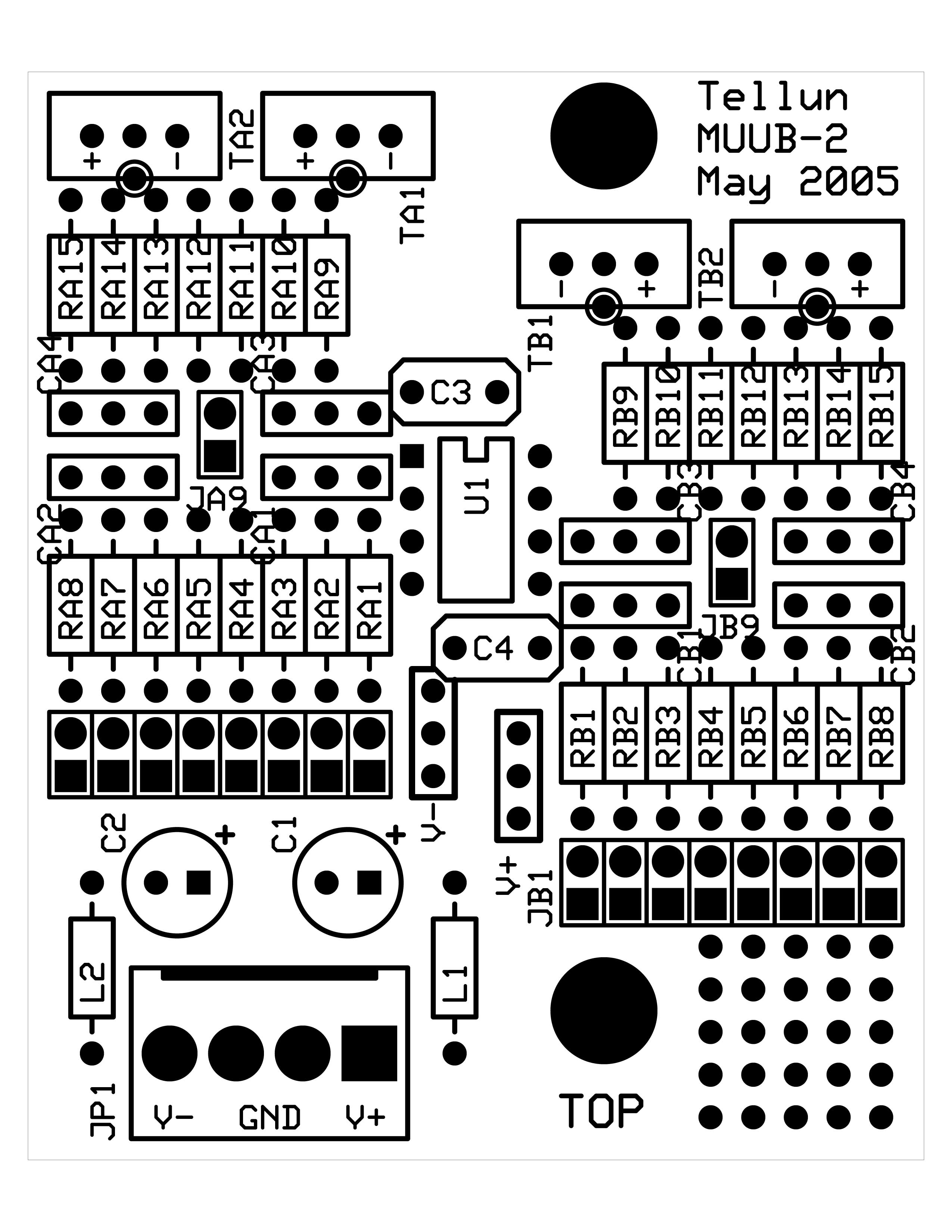

Here is Scott's drawing of the MUUB2 overlay:

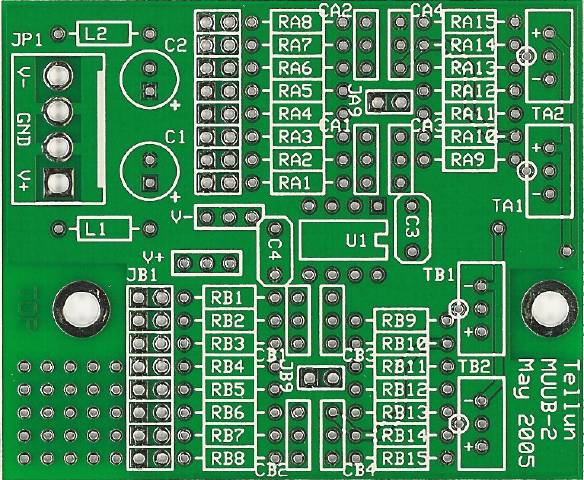

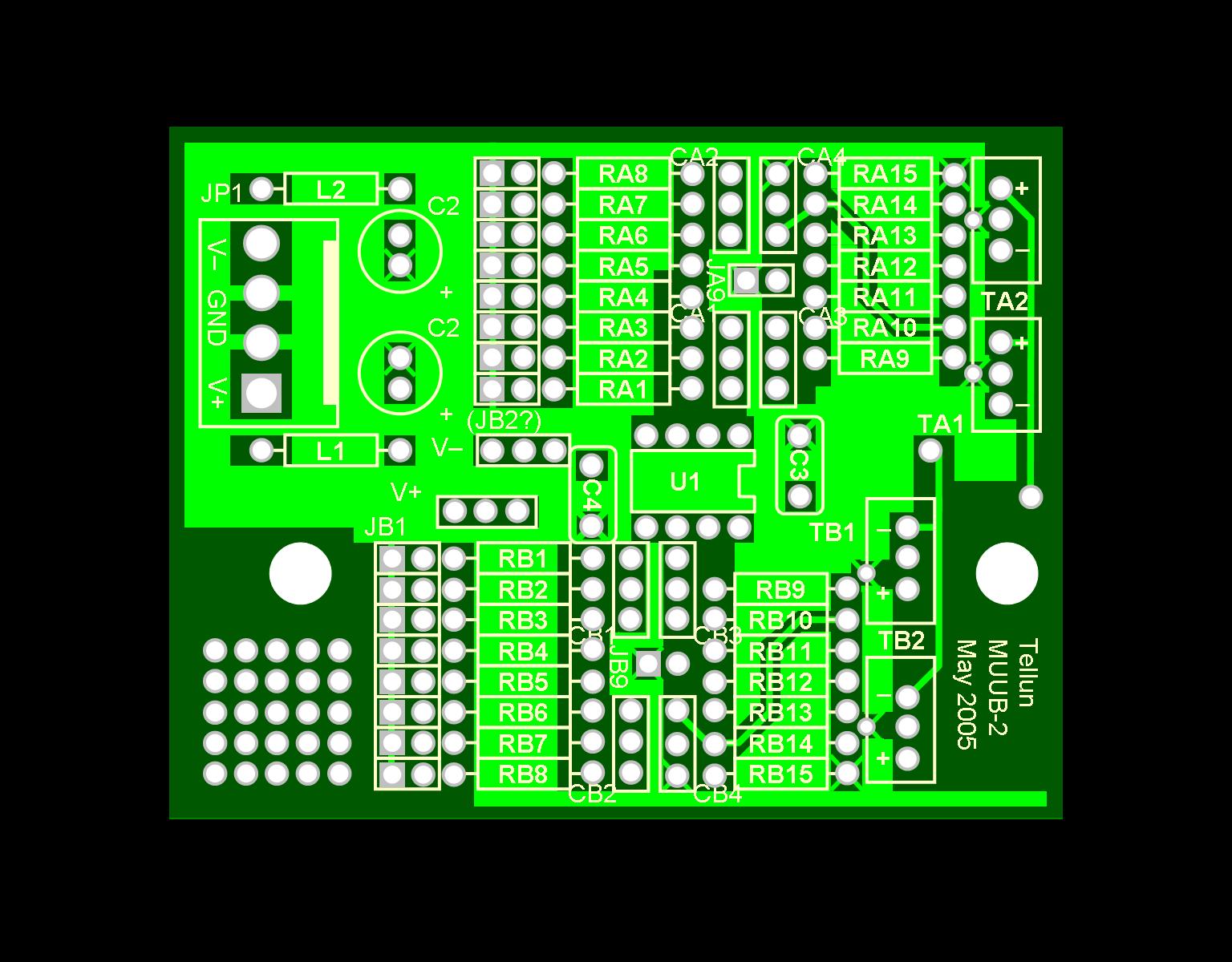

Here's a drawing of the MUUB2 as seen from the top. The exact location of the pads is a little off in a couple places, but you can accurately see where a 1/10 in spacing vs a 2/10 in spacing is, for instance... anywhere it really counts, anyway:

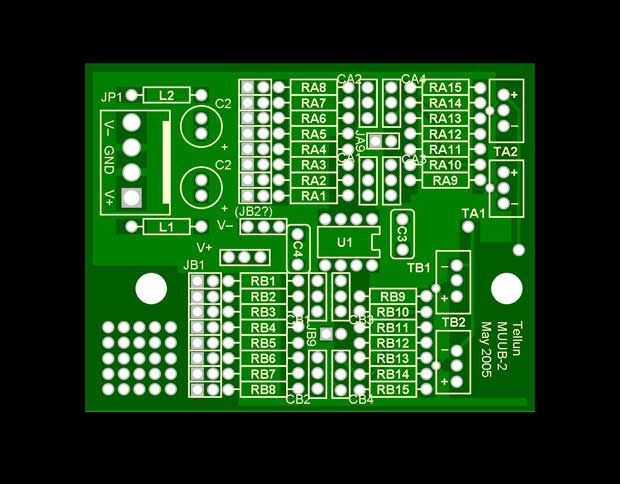

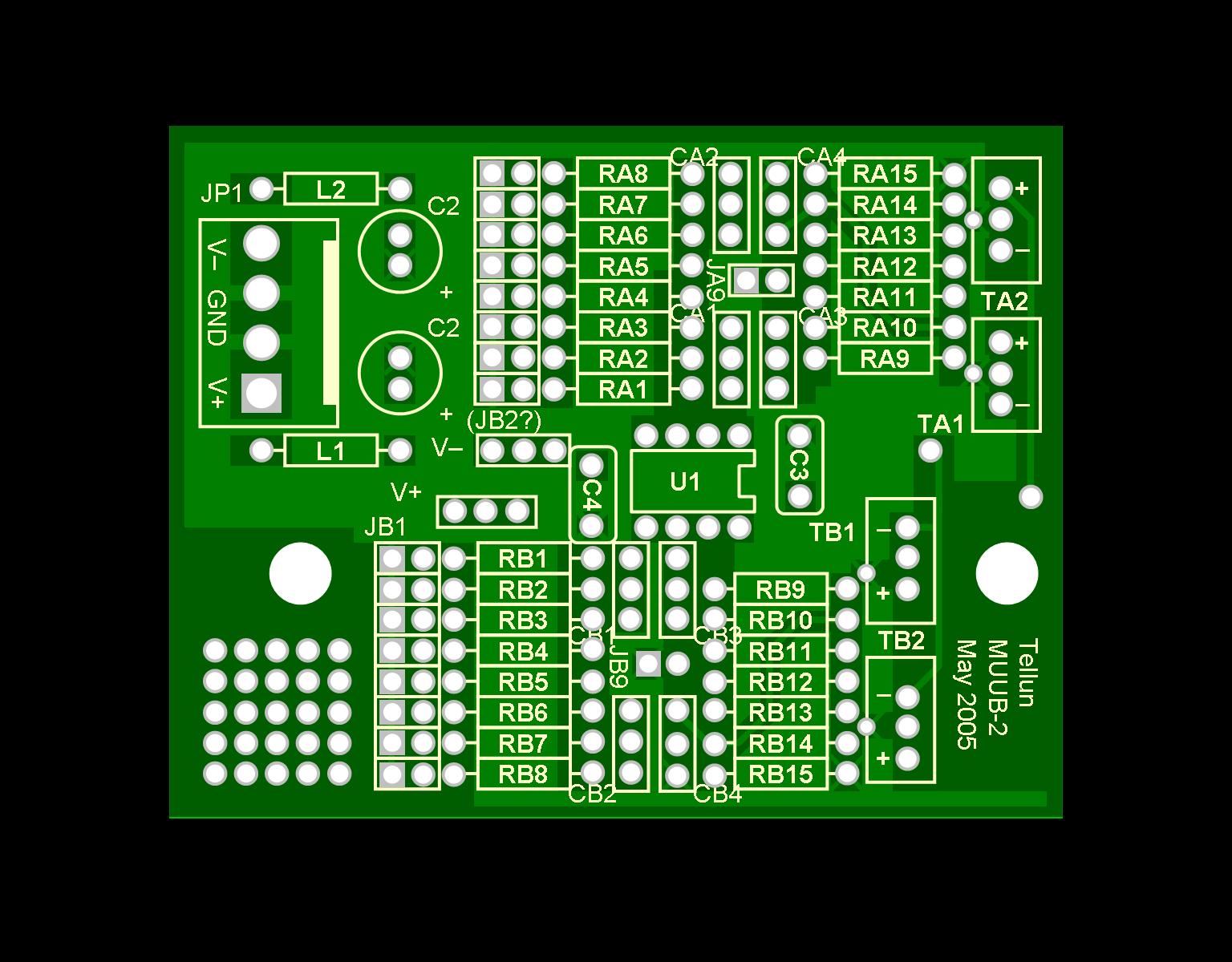

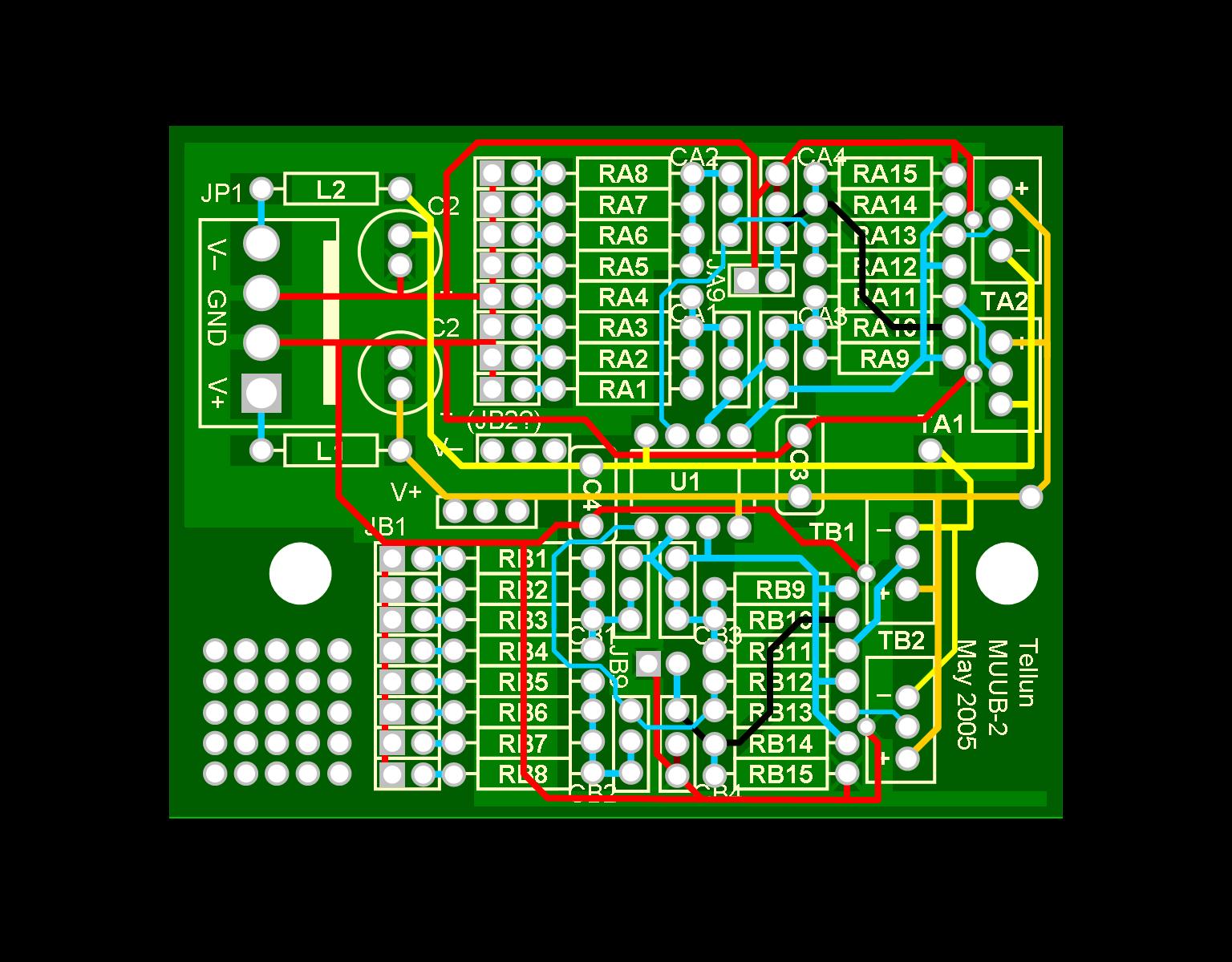

The following drawing illustrates how the traces hook things up.

Ground - Red.

The red lines show the pads that hook up to Ground by way of the top traces.  The dark red lines (there are only a couple dinky ones) show a couple pads connected to ground by way of a trace on the back.

-15V - Yellow

(some traces are on front, some on back)

+15V - Orange

(some traces are on front, some on back)

Other traces on front - Black

Other traces on back - Blue

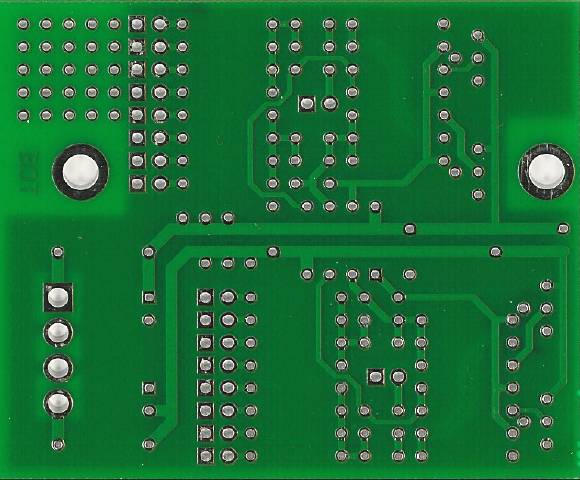

Actual top traces:

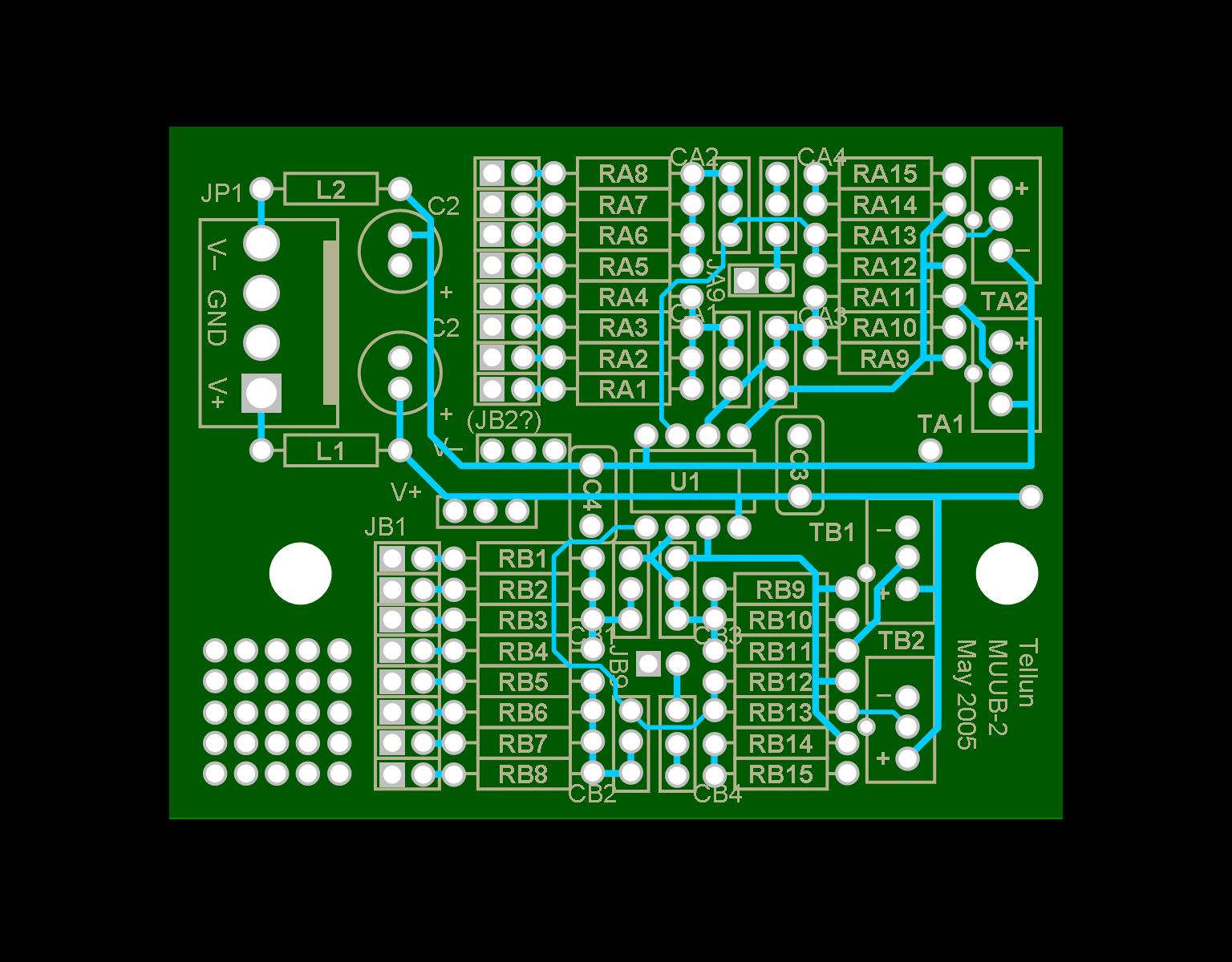

Actual bottom traces viewed from the top - as if the pcb is transparent:
